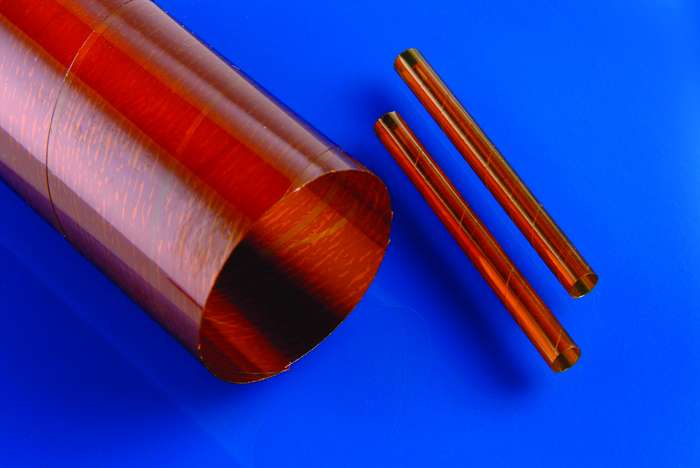

Non-shrink tubing and cut pieces

Exceptional dielectric strength and performance at high temperatures.

Multilayered precision wound protective tube made from DuPont™ Kapton® film. Plamide Non-Shrink Tube is ultra-stable and maintains its dielectric strength at high temperatures.

It is suited to applications where an ultra-thin walled electrically insulating tube is required to perform at high temperatures.

Plamide Non-Shrink Tube is suited to a wide range of protective wire windings in applications, from defence, space and aerospace, to automotive and household goods.


  • DuPont™ Kapton® HN construction provides excellent mechanical properties and performance at high temperatures
  • Available with internal diameters from 1.60mm to 210.00mm, with wall thicknesses as fine as 0.028mm
  • Suitable for Class H applications and temperatures up to 250°C depending on application

More features

  • UL recognised DuPont™ Kapton® film construction maintains high dielectric strength (25μm thickness 276V/μm) and dimensional stability at high and low temperatures (<2% expansion at 95% humidity)
  • Wall thicknesses available from 0.028mm
  • Internal diameters available from 1.60mm
  • Different construction variants supplied to match application requirements, using 0.012, 0.025, 0.050 and 0.125mm film
  • Maintains dielectric strength when exposed to radiation
