Lamina was the first Company to provide a full range of Imperial and Metric standard sizes to meet international studding sizes and flange hole dimensions,
THE IMPERIAL SIZES are available made from Mylar Polyethylene Terephthalate and a separate range made from Nomex Polyamide paper. All imperial tubes have a wall thickness of 0.8 mm.

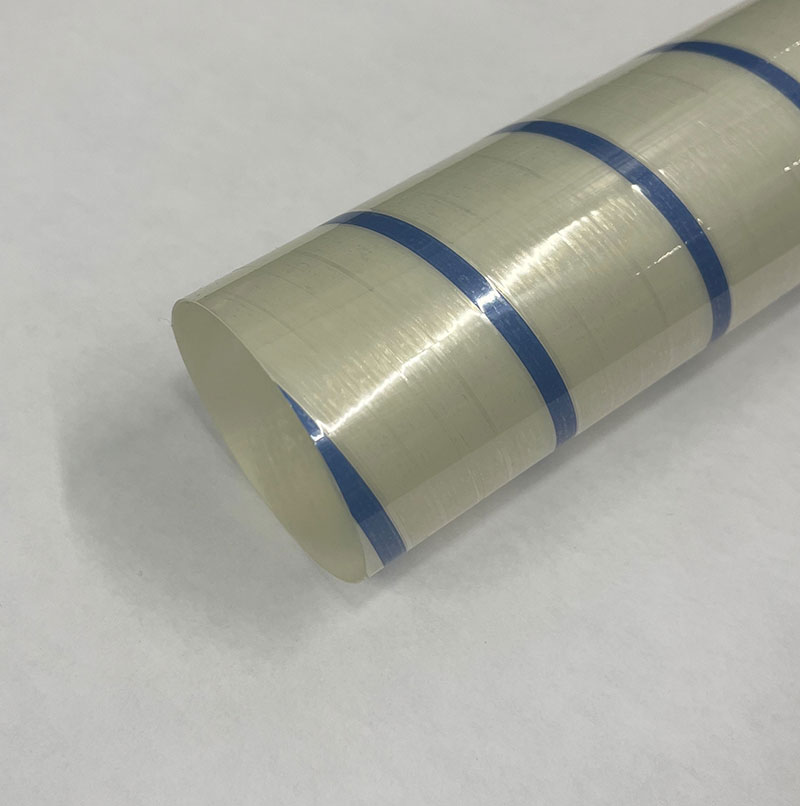

THE METRIC SIZES are also available made from Mylar Polyethylene Terephthalate and a separate range made from Nomex Polyamide paper. The metric Mylar tubes are identified with a blue stripe to clearly differentiate them from the imperial sizes. Metric tubes have a wall thickness of 0.5 mm.
All bolt insulation tubes are supplied in 1,000 mm and 2,000 mm lengths. 1,830 mm length are available for the US market. A detailed data sheet is available for download.
