Non-shrink tubing, cut pieces and end caps

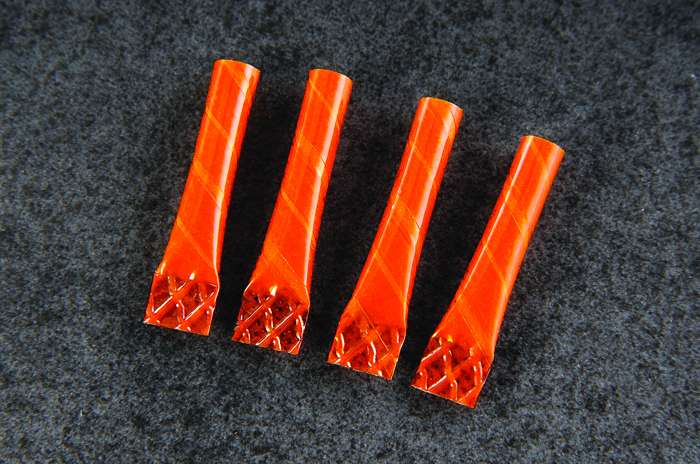

Multilayered precision wound protective Endcap made from DuPont™ Kapton® film and Nomex®.

Designed for use in varnish impregnated electrical motors, Plamide Endcaps maintain electrical resistivity, dimensional stability and strength at high temperatures and in the most demanding applications. Sonic welded seal is chemically resilient and further contributes to the robustness and reliability of the eventual product.

Plamide Non-Shrink Endcaps with Varnish EnCapSure are particularly suitable for application in bulk process engineering environments, where ease of fitting is required.

They are widely used to insulate joined ends in motor windings, in domestic appliances, aerospace and automotive applications.


  • An effective component: consistently easy to apply
  • Mechanical and dielectric performance improves with varnish impregnation
  • Unique 5 layer DuPont™ Nomex® grade 411 and Kapton® HN construction provides excellent mechanical and dielectric strength
  • Available with internal diameters from 2.00mm
  • Suitable for Class H applications and temperatures up to 180°C

More features

  • Constructed from UL recognised materials
  • Maintains dielectric mechanical and cut-through strength across applications
  • Endcaps of any diameter can be manufactured with a variety of wall thicknesses from 0.35mm
  • Available with internal diameters from 2.00mm
